TRAXON
WALLWASHER
OUTDOOR LIGHTING

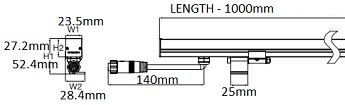

ARCHISHAPE MEDIA TUBE_RGBW_1000mm

ARCHISHAPE® Media Tube runs on 24V power supply, and fits into any wall, façade or media lighting application with tight installation requirements, while the wide beam angle output and 10-pixels-per-meter ensures a smooth illumination experience. This product greatly simplifies the lighting installation for building façades, media applications, bridges and more.

Specification
Power 14W/M
Color Temperature RGBW-2700K
Light Source Type LED
Lumen Output 420LM/M
Finishing ALUMINIUM
IP Rating IP68
Color Rendering CRI90
Driver DMX 512
See More
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.93 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 127 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
CEILING LIGHT
INDOOR LIGHTING
Single emission ceiling lights for indoor application. The warm white LED light source with a extra wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of aluminium 6060 and features a embossed white ral 9003 finish, processed by means of powder coating The device body is made of aluminium 6060 and features a 5g 9005 black finish, processed by means of powder coating; the diffuser is made of extra clear glass. The ingress protection degree is IP40; the total weight is of 0.50 kg. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
FOOT LIGHT
OUTDOOR LIGHTING

Single emission wall lights for outdoor application. The super warm LED light source with a asymmetric wallwasher light distribution is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 80; the source

luminous flux is 136 lm, with a 136.0 lm/W nominal luminous efficacy. The device body is made of aluminium 6026 and features a grey ral 7021 finish, processed by means of open pore anodizing + powder coating;

the diffuser is made of silicone resin. The ingress protection degree is IP66,IK10.

LINEALIGHT
SURFACE LINEAR LIGHT
INDOOR LIGHTING

Single emission systems for indoor application. The warm white LED light source with a no optic light distribution is composed of 288 topled LEDs. The luminaire body is made of aluminium 6060 and features a white finish, processed by means of powder coating. The ingress protection degree is IP40.
