Recessed location luminaire for installation in walls or stairs. Installation possible in horizontal or vertical burning position. Luminaire made of aluminium alloy, aluminium and stainless steel. IP65,IK06. DIMENSION: (W)420x(H)125x(D)90mm.

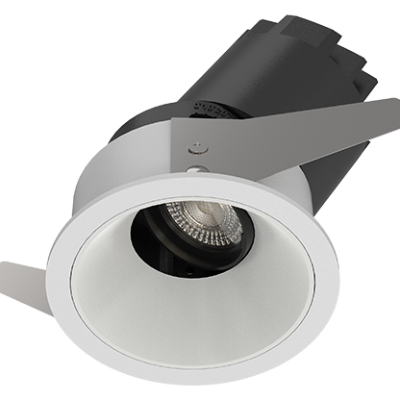

Eclectic Ø70. Adjustable Downlight (35º tilt, 360º rotation). “Soft” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 47º cut-off angle. IP20 water tightness (for IP54, please ask the dedicated accessory). Alternative options for lenses, orientation modules and style façades are available as spare parts. The ingress protection degree is IP20.

Zebra Series: Application environment : Outdoor ·Working life : ≥100,000 hours ·Cabinet material : Aluminum alloy ·Brightness : 1000 ~ 5000cd / ㎡ ·Installation method : Hoisting / Fixing ·Certification : CE / CCC / FCC

Can be customized size and shaped.

Pixel Pitch (H/V): 20mm, Pixel Configuration （SIDE):1 x SMD2727, Brightness（CD/m²):1000 ~ 7000, Pixel Density（dot/m²):2500, Transparency: 60%, Cabinet Resolution（dot): 50x50, Module Size（mm): 1000 x 28, Module Resolution: 50 x 2 dot, Cabinet Weight: ≤16Kg / m², Ingress Protection (Front/Back): IP65, Viewing Angle (H/V), 120°/ 120°, Viewing Distance:>20m, Gray Scale: 16 bits, Avg.Power Consumption（W/m²): 600, Refresh Rate（Hz): 3840, Input Voltage: AC100 ~ 240V , 50 / 60 Hz, Drive Mode: Static, Control Mode:  Synchronous display with control PC by DVI, Support Input: Composite , S-Vido , Component , VGA , DVI , HDMI , HD_SDI, Operating Temperature:  -40°C ~ 50°C（work), - 40°C ~ 60°C（store), Operating Humidity: 35% ~ 85%（work), 10% ~ 90% （store）

Round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; System Power 9W; measurements Ø78mm x 97mm; ceiling cutout of Ø68mm with a narrow mounting trim; ceiling thickness 5-20mm; luminaire’s weight is approximately 210g; rotation 350° and pivot Max. 30°; CCT 2700K with a System luminous flux of 620lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN
