Lightplane Linear Up & Under is a compact and streamlined luminaire with a single extruded aluminium channel that provides both direct and indirect illumination. Integral driver configuration with flush lens. Individual or continuous row mounting.The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+ White.

IP67. IK09. Stainless steel inground section. Die-cast dome made from marine-grade aluminium alloy. Luminaire can be driven over at low speed. 5CE superior corrosion protection including PCS hardware. Optical lens made from PMMA. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 1.5 m of flexible PVC-free cable. Integral EC electronic converter. CADoptimised optics for superior illumination and glare control. OLC One LED Concept. Luminaire installation blockout included in supply. Optional 2200 K version available.

Ø75 The fixture head is fixed. Ø90 The fixture head is 30 degree adjustable and 360 degree rotatable.The adjustable downlight luminaire body made of alluminium and reflector is plastic. Powder coated anti-glare ring is black on all variants. Ingress protection IP20. DIMENSION: Width x Height x Length (mm) | 75 x 78 x 75 Max 0.4 kg | 90 x 83 x 90 Max 1.9 kg.

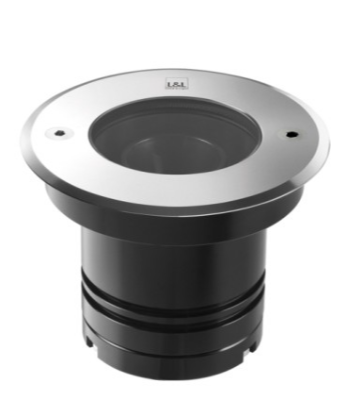

Compact recessed outdoor luminaire (Ø112x95 mm), drive-over rated up to 5000 kg, 5W power, 24Vdc, 3000K, CRI 80, 282 lm output, ±10° tiltable optics (12° beam), IP65/IP67/IP69, IK10, made of CNC-machined aluminum and stainless steel, with 10 mm tempered glass, Casambi compatible, and IPS-protected.
