H 50mm, W 80mm. LED Driver Input AC 85-265V 50/60Hz Max 0.09A. Output Voltage DC24-42V

Recessed LED luminaire with direct beam made of high-quality extruded aluminium profile; black powder-coating finish – textured matt (RAL 9005); ON-OFF Driver is integrated into the luminaire housing; System Power (Total power consumption) 30W – Low Power; Dimensions of the profile channel (LxWxH): 2540mm x 54mm x 110mm; ceiling cutout of 2535mm x 49mm with a narrow mounting trim; luminaire's weight is approximately 4800g; CCT 3000K with a System Luminous Flux of 3270lm; decent color rendering at an index of CRI>80; Binning initial <= MacAdam 3; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient LUMINUS LED Chips of the latest generation; 5 years warranty; diffusor made of Polymethylmethacrylate (PMMA) clear with microprismatic plate inserted for lower luminance; degree of housing protection IP20; RG<1 (EN62471); protection class I

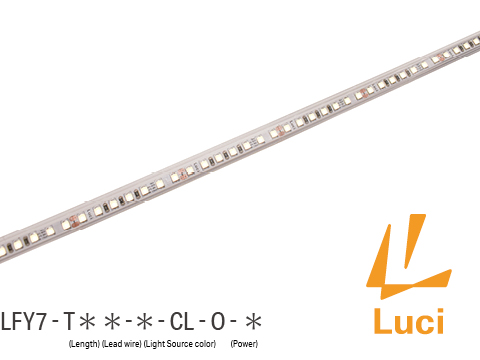

2 types of LED pitch (7.1 or 17.8mm) for profile and cove lighting The 5 wattage options, ranging from 2 to 15W/m, utilize the same LED package to ensure consistent CCT High efficient LED package achieving up to 185 lm/W.

Eclectic Ø90. Non-adjustable Downlight. “Flat” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 49º cut-off angle. IP54 water tightness. Alternative options for lenses, orientation modules and style façades are available as spare parts. The ingress protection degree is IP54.
