FORMALIGHTING
RECESSED LINEAR LIGHT
OUTDOOR LIGHTING
3199BN11-803025DA29

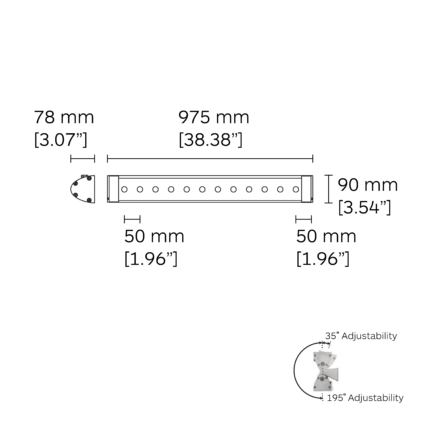

Linear projector with light housing in aluminium extrusion. End caps and mounting brackets in cast aluminium. Product inclusive of toughened safety glass, weatherproof durable silicone gasket, breather device and external screws made of stainless steel. Front cover in hinged aluminium frame designed to avoid accumulation of dust and water. Electrical installation includes double cable entry. Available in two sizes. Light adjustable vertically up to 195° and horizontally 0-35°.
Specification
Power 39.6W
Color Temperature 3000K
Light Source Type LED
Lumen Output 24300LM
Finishing GREY
IP Rating IP66
Color Rendering CRI 80
Driver ON/OFF DRIVER
See More
LINEALIGHT
SURFACE TRACKLIGHT
INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.612 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.400 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
FORMALIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING
LED Built-in with body - High Power LED - Power LED. 3-step MacAdam
LINEALIGHT
SPOTLIGHT
OUTDOOR LIGHTING

Single emission projectors for outdoor application. The super warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered. The ingress protection degree is IP66,IK10.
