3496BB13-803028DA10

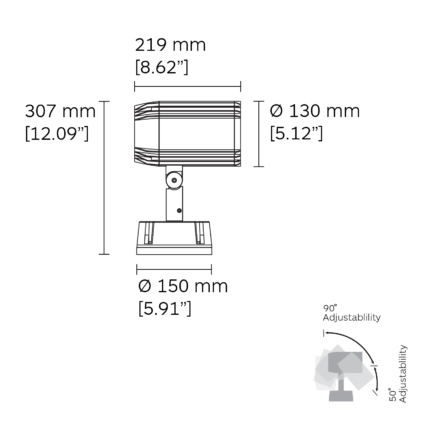

Recessed/surface luminaire with light housing in aluminium extrusion inclusive of with toughened safety glass, weatherproof durable silicone gasket and external screws made of stainless steel. Ring and back plug cover in cast aluminium. Base and bracket in cast aluminium. Front cover designed to avoid accumulation of dust and water. Ceiling installation via clamping wings for ceiling thickness 1 to max.30mm. Surface version tiltable vertically 0-140° and rotable horizontally 350°, inclusive of mechanical locking system to ensure aiming stability.
Specification
Power 22.5W
Color Temperature 3000K
Light Source Type LED
Lumen Output 1692.98LM
Finishing BLACK
IP Rating IP66
Color Rendering CRI 80
Driver ON/OFF DRIVER
See More
SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Recessed adjustable twin downlight, luminaire body made of aluminium housing with black powder coated finish. White finish and Honeycomb accessory available upon request. IP20

SPARK
SUSPENDED LINEAR LIGHT
INDOOR LIGHTING

Customize Curve Suspended / Surface linear light for general lighting with a signature minimalist and compact design to be installed on ceilings.

XAL
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Round recessed spotlight in die-cast aluminium with recessed luminaire plane; surface black powder coated; 360° rotatable and 35° tiltable; installation without tools in mounting set due to patented ball catch system; round installation housing; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI. The ingress protection degree of protection IP20.

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.511 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 92 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
