IGUZZINI
SURFACE LINEAR LIGHT
OUTDOOR LIGHTING
IGUZZINI_S617_Compact 47

Direct light luminaire with monochrome LED lamps. It consists of a body and installation brackets to be ordered separately. The body is made of extruded aluminium and includes die-cast aluminium end caps with 50/60 Shore A silicone seals. It is subjected to a multistep, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The following painting stage consists of a primer and a liquid acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance. The top of the optical assembly is closed by a 3 mm thick transparent glass screen, fixed with silicone. Complete with multi-LED power plate in Warm White and power supply on/off (power supply included). The product is supplied with a nickel-plated brass PG11 double cable gland with H07RN 2x1, 5mm2 rubber outlet cables for pass-through wiring. Fitted with optics with a plastic (methacrylate) lens for Spot lighting. All external screws used are made of A2 stainless steel. The luminaire technical characteristics conform to EN 60598-1 standards and particular requirements.

Specification
Power 57W
Color Temperature 3000K
Light Source Type LED
Lumen Output 4620 LM
Finishing GREY
IP Rating IP66
Color Rendering CRI 80
Driver
See More

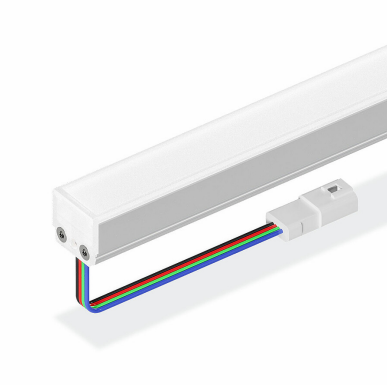

LED LINEAR
SURFACE LINEAR LIGHT
OUTDOOR LIGHTING

Modular luminaire with 8 different optics available and side cabling and a large panel of mounting options. Translucent end caps and special cable exit solutions make it easy to create infinite lines of light. Housing and mounting profile are also available in black for directly visible applications. Minimalistic form factor and several cable exit and connector options enable seamless integration.

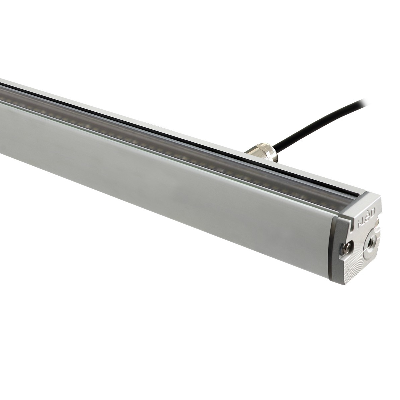

LINEALIGHT
WALL LIGHT
OUTDOOR LIGHTING
Single emission lines for outdoor application. The super warm white LED light source with a asymmetric wallwasher light distribution is composed of 6 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 1692 lm, with a 128.2 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.1 kg. The total absorbed power is 14.5 W. The power supply cable is included and features a 0.2 m length.

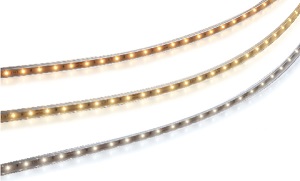

LUCI
LED LIGHT BAR
INDOOR LIGHTING
Our next FLEX standard with preferable price - Renewed to High CRI LED package, >Ra90 - High-energy efficacy achieving up to 92.4lm/W - 3 steps MacAdam ellipse LED package - 5 types of wattage and lumen output (18.2W, 12.1W, 9.5W, 6.5W, 4.5W per meter) - 3 types of LED pitch (15mm, 20mm, 30mm) - No need to attach aluminum profile for heat sink.
LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING

The power supply driver is not provided and is to be ordered separately.

The total absorbed power is 32.5 W. The power supply cable is included and features a 1 m length.

The device features protection class III and can be wall lights, ceiling or floor-mounted.
