Carrying the same DNA as the Indoor series, the brand new MINI30 Outdoor Spotlight offers the same beam angle lineup in an IP65-rated body. Carrying the same DNA as the Indoor series, the brand new MINI30 Outdoor Spotlight offers the same beam angle lineup in an IP65-rated body.

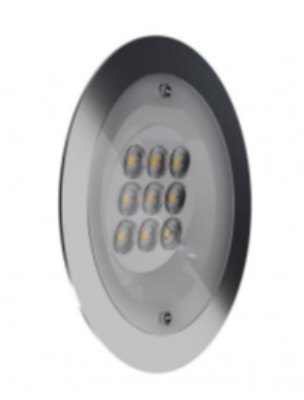

Single emission submerged for outdoor application. The natural white LED light source with a mix flux 2 asymmetric + flood light distribution is composed of 9 powerled LEDs. The luminaire body is made of stainless steel and features a steel finish; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68,IK10.

The recessed spot INVADER WALLWASH is part of the product family INVADER. The article can be powder coated in 25 colours. Stated photometric values correspond to operation by 350 mA; a suitable ballast needs to be sourced separately and is not scope of delivery. Dimming (# 220-0575) depends on the used ballast and may vary. The Wallwasher corresponds to protection class SK3 at IP20. ZERO LIGHT LEAKAGE technology guarantees trouble-free use in acoustic ceilings. A PROLICHT lense pack is optionally available.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, with partial frosting for uniform light diffraction and dark silk‑print, silicon gasket, closure with 4 stainless steel screws, wall bracket: 2 drilled holes Ø 7 mm, spacing 35 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks , integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L80/B20 > 50.000 h, Beam angle (fwhm): 12°, luminous flux: 2539 lm, wattage: 28 W, delivered lumens 91 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,032 m², dimensions (L×H×W): 472 × 50 × 62 mm, weight 2.1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.
