Reiko 4.0 code: RK4000100050SE-1

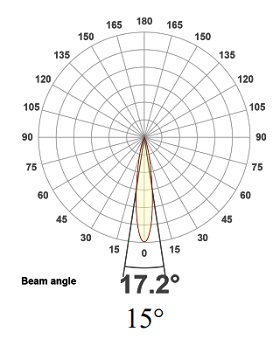

projector for outdoor applications; surface mounted (ceiling, wall, ground, spike); Power consumption: 25W; Power supply: 24Vdc; Lumen output at source: 2228 lm (3000K, CRI >90); Delivered lumen output: 1809 lm (3000K, 13°, 25W, CRI >90); 1 COB LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C); LED colour: 3000K; Optics: 13°: optical system consisting of a high-efficiency, deep-set TIR lens combined with a high-quality technical filter; CRI Colour Rendering Index: >

XOOLUX NANO is a minimalistic and flat luminaire designed primarily for grazing applications. The updated IP classification now stretch to IP67, meaning water resistance and suitable for outdoor use. Nano lens optics allow precise control of the light distribution while maximizing lumen output and minimalizing color over angle for crisp and homogeneous grazing. Different light distributions makes Xoolux Nano the goto product for grazing as well as delicate flooding applications. Further improving flexibility is achieved through the use of mounting clips, enabling tilt angles every 5° increments from 0° to 45°.

The adjustable downlight that highlight the desired subject or place and provide optimum illumination by being nondescript. The simplicity of its form provides smooth integration in architectural features. The luminaire come with 3 different colors metallic silver, black and white.

Wall mounted luminaire. IP rating IP 54.Fixing base in extruded anodized EN AW-6060 aluminium housing (copper free) with high corrosion resistance. Transparent silicone end caps for LED circuit and aluminium EN AW-47100 for the extruded parts. Mechanical resistance IK 06.Supply 5m cable section type neoprene H05RN-F. Isolation: CLASS III . Available colours: White (cod.01), Black (cod.09) NB: Pivot / Base are always in black color. Weight: 1.6255 Kg Glow Wire test: LED module included
