Wall grazing light for organic design

Lower bendable rail and improved glare cut shield

Individual louver can be added for glare cut from the side view

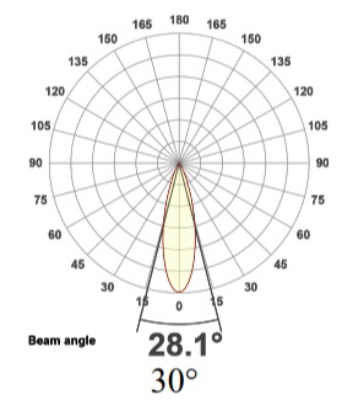

Single emission lines for outdoor application. The warm white LED light source with a narrow spot light distribution is composed of 9 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 3.4 kg. The power supply cable is included and features a 0.17 m length. The device features protection class I and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions.

Recessed Wallwasher made of aluminium housing with white powder coated finish. Asymmetric beam angle. Luminaire washes the light over the wall from bottom to top evenly and softly in wide range, hardly producing dark area in the top of the wall.

Wall mounted luminaire. Recessing depth 95 mm ( Round recessed Ø 45 mm ) . Recessing depth 110 mm ( Round recessed Ø 60 mm ) . Recessing depth 125 mm ( Round recessed Ø 85 mm ) . IP rating IP 65 IP67
