24 V, IP67 protected and IK10 certified, linear LED luminaire for indoor and outdoor in-ground installation. Suitable for installation into roads and parking lots according to EN 60598-2-13. To be walked on and traversed by vehicles with air filled tires (including trucks used for delivery). Polyurethane encapsulation offering a premium water proof sealing (values), UV resistance (no coloration or increase of absorption) chemical stability against urban gazes and protection against abrasion. Stainless Steel V4A housing delivered with male/female IP67 connectors. Available either with an opal top layer or transluscent with an internal 10° and 30° lenses for wall grazing. Light source assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.

Compact design lighting with a 5.5mm light-emitting surface. Dotless and threesided light emission from the front side and the side surfaces expands design possibilities in terms of exhibiting the light source. The smart form allows a unique line lighting to materialize for fixtures, handrails, backs of mirrors, etc

IP67. IK07. Stainless steel inground section. Die-cast hood made from marine-grade aluminium alloy. Construction helps to prevent accumulation of insects, leaves and debris on lens and restricts glare to passers-by. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 1.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control.

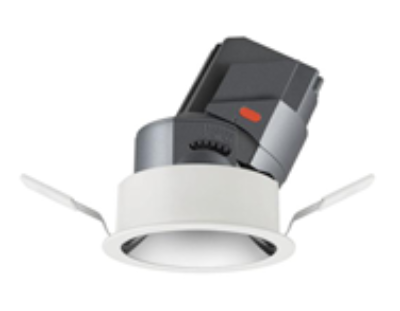

Round recessed mounted downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; LED 18W; measurement Ø85mm; ceiling cutout of Ø75mm with a narrow mounting trim; rotation 355°and pivot max. 30°; CCT 3000K with a System Luminous Flux of 1250lm high color rendering at an index of CRI97; SDCM: 2; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient BRIDGELUX LED Chips; 5 years warranty.
