ILIGHT
CONTROL SYSTEM
CONTROL SYSTEM
SCMR1220

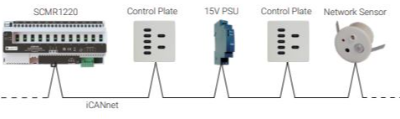

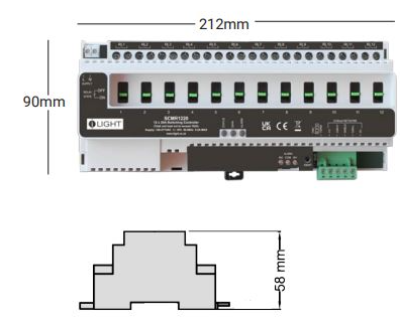

The SCMR1220 is a key building block when specifying high power switching control. This 12 channel, feed through-latching relay controller enables lighting loads up to 20A to be switched. The twelve TV8 rated relays support resistive, capacitive, and inductive lighting loads, as well as non-lighting loads of any voltage up to 230VAC. The economical design of SCMR1220 provides a high density of channels in a small footprint, minimising the required space and cost of installation.

Specification
Power NA
Color Temperature NA
Light Source Type NA
Lumen Output NA
Finishing ALUMINIUM
IP Rating IP20
Color Rendering NA
Driver
See More
LIGHTFORMS
SUSPENDED PENDANT LIGHT
INDOOR LIGHTING

A super compact cylindrical light source with a huge range of optical options. The construction is an extruded aluminium housing packaged with either optic, reflector or LED engine - but always in the classic and clean cylindrical form. Control gear is generally always integral, but this may be restricted with certain outputs, control types and additions. But we can always work this out for you.

LINEALIGHT
PROJECTOR LIGHT
OUTDOOR LIGHTING

Single emission projectors for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of aisi 316 steel and features a steel finish, processed by means of electropolishing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68.IK10.

FLOS
RECESSED LINEAR LIGHT
INDOOR LIGHTING
LED modular system for recessed Trim installation, including LED luminaires, aluminum installation profile and diffusers. Drivers included in lighting modules for 220-240V connection to mains or to other lighting modules.
LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING

Single emission wall lights or lines for outdoor application. The warm white LED light source with a spot light distribution is composed of 18 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 10486 lm, with a 130.3 lm/W nominal luminous efficacy.
