Round recessed luminaire with contact frame. Fixed Super Comfort version: the LEDs are set a long way back to minimize glare and guarantee a high level of visual comfort. The main body is made of die-cast aluminium with a radiant surface that guarantees optimum heat dissipation. Metallised, thermoplastic, high definition reflector. IP20

The Nano Eclipse Trimless is a recessed downlight with a trimless plaster in frame and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture, 360° rotation. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.

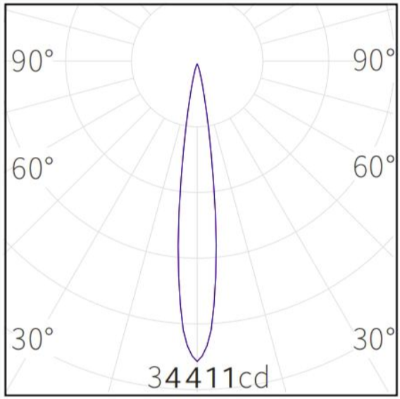

The pendant luminaire SIGN DIVA TUBE from the familiy SIGN consists of aluminum. With 3 powder coated options 15625 colour combinations can be achieved. The ballast is integrated and allows for an operation with 220-240V (50/60Hz). SIGN DIVA TUBE (# 410-4302) is dimmable via BUS. The luminaire with direct illumination and corresponds to protection class SK1 at IP20. POLAR CURVE Measurement based on the color white

SENSE 68 G2 R1

STR1G2-9303011A-BB

Round recessed downlight made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; 0-10V Dim Driver; System Power 13W; measurements Ø78mm x 97mm; ceiling cutout of Ø68mm with a narrow mounting trim; ceiling thickness 5-20mm; luminaire's weight is approximately 210g; rotation 350° and pivot max. 30°; CCT 3000K with a System luminous flux of 800lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 30° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP20 (LED Module IP54); light source replaceable by a qualified electrician; driver replaceable by a qualified electrician
