LUTRON
CONTROL SYSTEM
CONTROL SYSTEM

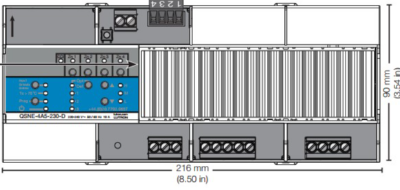

ENERGI SAVR NODE QSNE-4A5-230-D

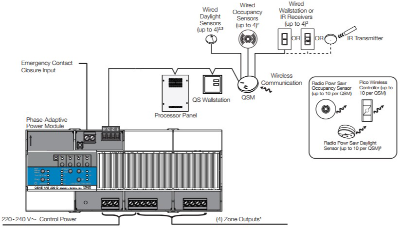

The Energi Savr Node (ESN) family is a group ofmodular products for the control of lighting loads andmotor loads. PRO LED+ Phase Adaptive Power Modules can beused in a QS Standalone system with an iOS EnergiSavr Application, a Quantum system, myRoom Plussystem*, or an Athena system.• Includes QS link for seamless integration of lightsand controls.

Specification
Power NA
Color Temperature NA
Light Source Type NA
Lumen Output NA
Finishing GREY
IP Rating IP20
Color Rendering NA
Driver PHASE DIM DRIVER
See More
LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a flood light distribution is composed of 9 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98672(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
BEGA
FOOT LIGHT
OUTDOOR LIGHTING
Recessed wall luminaire with light directed downwards, for flush or surface mounting installation. Luminaire for the uniform and glare-free illumination of ground surfaces. Luminaire made of aluminium alloy, aluminium and stainless steel. IP65,IK10. DIMENSION5: (W)300x(H)300x(D)105mm.
IGUZZINI
RECESSED DOWNLIGHT
INDOOR LIGHTING

Fixed round luminaire designed to use a LED lamp with C.O.B. technology. Version with rim for surface-mounting. Reflector vacuum-metallised with aluminium vapours with an anti-scratch protective layer. Die-cast aluminium body and passive dissipation system. Product complete with LED lamp in neutral white colour tone (4,000K). General light emission, with controlled luminance UGR<19 1500 cd/m2 α>65° wide flood optic.The ingress protection degree is IP20.

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.12 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 40 x 40 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
