Housing made corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized
coating process, Colour: black ral 7021, all exterior parts are stainless steel, UV stabilised, impact‑resistant polycarbonate

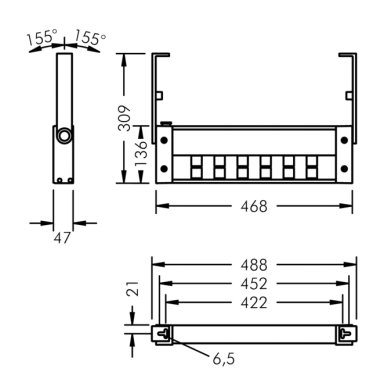

cover , silicon gasket, with 4 stainless steel screws, wall arms: 2 drilled holes Ø 6.5 mm, spacing 422 mm, tilt range: 310°,

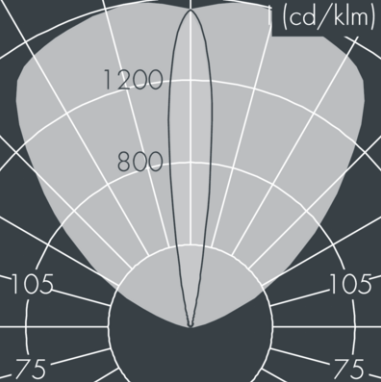

cable gland: PG11, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 15° / 103°, luminous flux: 2238 lm, wattage: 29 W, delivered lumens 78 lm/W, protection type IP65, protection class I, impact resistance IK10, windage area 0,06 m², dimensions (L×H×W): 470 × 47 × 135 mm, weight 3.4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral,
db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high
ambient temperature.
Luminaire ceiling-recessed downlight that highlight the desired subject or place and provide optimum illumination by being nondescript. The simplicity of its form provides smooth integration in architectural features.
Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due
to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling
thickness of 2-25 mm; equipped with six narrow medium round light elements; symmetrical light distribution with
precise radiation characteristic, beam angle 22°; high quality reflector with micro-faceted, aluminum-vaporised
surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000
K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non
dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed
separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
Adjustable projector Ø86 with adapter for installation on base or mains voltage track. Luminaire body made of die-cast aluminium with rear cap and front ring in thermoplastic material (Mass-Balance). The product allows a rotation of 360° around the vertical axis with mechanical locking and an inclination of 90° with respect to the horizontal plane. Passive heat dissipation. OptiBeam Lens optical system with Flood optics
Single emission projectors for outdoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 770
lm, with a 128.3 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66.
