RISE is a system of beautifully designed outdoor rated luminaires that provide efficient and powerful light using the latest in LED technology. RISE F170 QUAD is a unique configuration that groups 4 RISE F170 singles allowing you to quadruple your lumen power, delivering up to 17,800LM. This unique fixture can be used to powerfully light one object or aimed separately. Allowing you to illuminate multiple applications. This powerful and compact LED light fixture can be used in spot, accent, landscape, architectural and floodlight applications. Its unique Marco™ lock feature allows for full 180° and 360° pan aimability of each fixture head using only one tool.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 2 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 70, max 2 SDCM, service life L90/B10 > 50.000 h, luminous flux: 679 lm, wattage: 9 W, delivered lumens 75 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,012 m², dimensions: Ø 123 mm, width 87 mm, weight 1.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

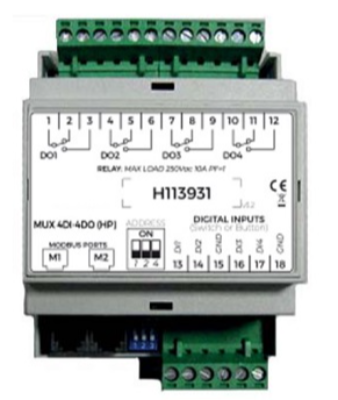

The Mux4I4O ModBus is an expansion module connected and controlled by the Intelligent Control Unit (ICU) of the MICROMASTER System, designed to meet automation systems for hotels and communities in general. This device adds 4 digital inputs and 4 digital outputs to the ICU to manage additional actuators. If required, being a modular solution this device can be add within the Micromaster room environment in a later project phase or while updating existing projects.
