MEYER
PROJECTOR LIGHT
OUTDOOR LIGHTING
8 890 046 029

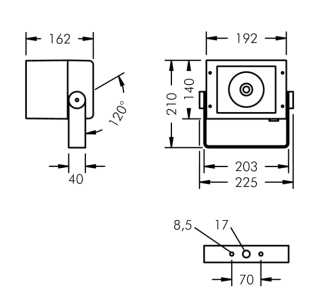

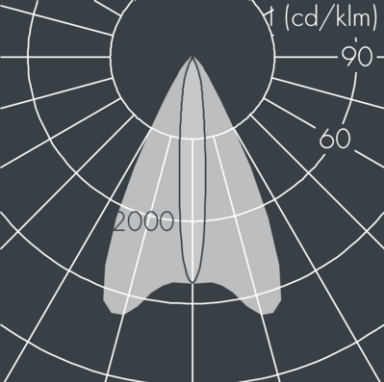

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector with matt finish, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 54° / 11°, luminous flux: 4225 lm, wattage: 48 W, delivered lumens 88 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 192 × 162 × 140 mm, weight 2.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
Specification
Power 48W
Color Temperature 3000K
Light Source Type LED
Lumen Output 4225LM
Finishing BLACK
IP Rating IP67
Color Rendering CRI>80
Driver ON/OFF DRIVER
See More
LINEALIGHT
PROJECTOR LIGHT
OUTDOOR LIGHTING
Single emission projectors for outdoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of aisi 316 steel and features a steel finish, processed by means of electropolishing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68,IK10.
LUCI
LED STRIP
INDOOR LIGHTING

It is an ideal solution for straight ceiling cove lighting, offering sleek, efficient, and uniform illumination with high quality Japanese LED package that enhances both aesthetics and functionality. Its high brightness of up to 20W/m and 2000 lumens delivers energy-efficient performance. Perfect for green building commercial spaces like offices and lobbies or hospitality venues such as hotels and restaurants, the LFY-I highlights architectural lines with precision. Customizable and cuttable, it

LIGHTFORMS
SURFACE MOUNTED LIGHT
INDOOR LIGHTING
Lightplane 6 is a large, linear luminaire that provides direct or indirect illumination in suspended, wall and surface-mount models. The luminaire features an integral driver along with a high impact satin diffuser. Available with several LED lamping options including multiple outputs, CCTs, tunable white, and color-changing RGB+ White.
ILIGHT
CONTROL SYSTEM
CONTROL SYSTEM

The SCMH0410-G2 is an indispensable addition to our family of DIN rail source controllers. Bringing together the best of our compact switching and DALI, 0/1-10V control products, the result is a compact yet powerful controller that supports innumerable applications, both in networked systems and as a standalone room controller. Each of the four volt free contacts can be switched independently or in tandem with the signal lines, switching up to 10A of load, they can just as easily be employed to control ancillary items such as local HVAC, air handling units or other non-lighting devices. All switched outputs are phase independent and support AC, DC or volt free contact switching applications. With an integral power supply, SCMH0410-G2 has sufficient capacity to support 50 DALI ballasts or 30 0/1-10V ballasts per signal output. Eight inputs provide the opportunity to connect a wide range of peripheral volt free contact devices, such as simple momentary action switches, door/window contacts, alarm inputs or presence/absence detectors. With iLight network connectivity, the SCMH0410-G2 can be linked with a virtually limitless number of other iLight products to build a system of any size.
