XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
090-7L351E0B21 090-7L30100

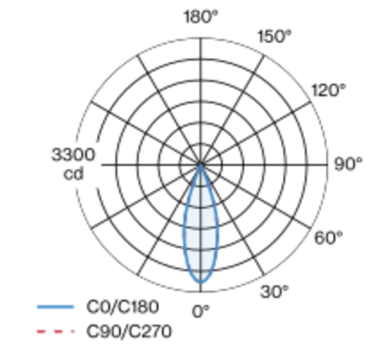

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with three medium square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 32°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
Specification
Power 11.2W
Color Temperature 3000K
Light Source Type LED
Lumen Output 844LM
Finishing BLACK
IP Rating IP20
Color Rendering CRI >90
Driver ON/OFF DRIVER
See More
CDN LIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING


DELTALIGHT
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Microgrid In completes the Snap-In range as it uses a similar principle of dividing the light unit into a mounting frame and a light module that can be snapped into the frame after installation. Microgrid comes in single, double and triple set-ups with trim. A visor is available to further reduce the impact of the intense light coming from the miniature light source, shielding the light source from directly looking into.

SPARK
SUSPENDED DOWNLIGHT
INDOOR LIGHTING

Suspended mount downlight luminaire body made of aluminium housing with white powder coated finish. Come with 1m hanging rod. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.

SPARK
RECESSED DOWNLIGHT
INDOOR LIGHTING

Recessed fixed downlight made of aluminium housing with white powder coated finish. Inner reflector available in mirror chrome, white and black color. Cut-out Ø150mm. For indoor use. IP20.
