XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
090-7L351F0B21 090-7L30100

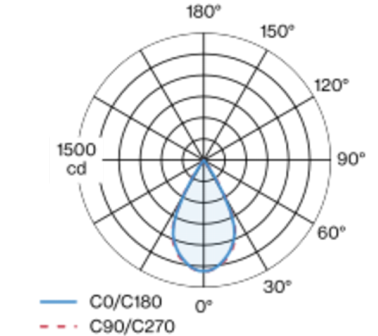

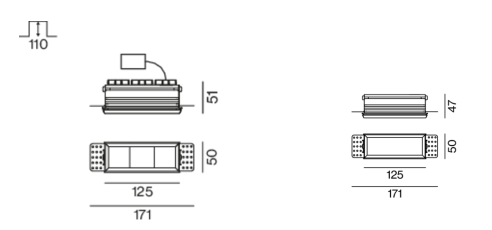

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with three flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 56°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 19; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
Specification
Power 11.2W
Color Temperature 3000K
Light Source Type LED
Lumen Output 1000LM
Finishing BLACK
IP Rating IP20
Color Rendering CRI >90
Driver ON/OFF DRIVER
See More
XAL
FOOT LIGHT
INDOOR LIGHTING
Rectangular wall recessed luminaire made from aluminium black housing. Suitable for wall thickness of 2-25 mm and incl. external converter. High quality reflector with micro-faceted, aluminum-vaporised surface. Asymmetrical light distribution with precise radiation characteristic. Passive cooling of the LEDs through improved heat sink geometry.
SPARK
SURFACE TRACKLIGHT
INDOOR LIGHTING

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.

LINEALIGHT
BOLLARD
OUTDOOR LIGHTING

Radial diffusion bollard & pole for outdoor application. The warm white LED light source with a asymmetric 180° light distribution is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a grey ral 7021 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP65, IK09.

LINEALIGHT
UP/DOWN WALL LIGHT
OUTDOOR LIGHTING
Single emission uplights for outdoor application. The warm white LED light source is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered. The ingress protection degree is IP68; the total weight is of 0.2 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 1 m length. The device features protection class III and can be floor-mounted with an outer casing, code 99855 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
