Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered high effiency safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, wall box with 2 stainless steel screws, wall box: 2 drilled holes Ø 7 mm, spacing 214 mm, cable gland: 4x Ø 7‑10 mm, connecting terminal: 3 pole, highly efficient reflector, integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L80/B20 > 50.000 h, Beam angle (fwhm): 62° / 142°, luminous flux: 3219 lm, wattage: 36 W, delivered lumens 89 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,057 m², dimensions (L×H×W): 324 × 85 × 183 mm, weight 3.3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

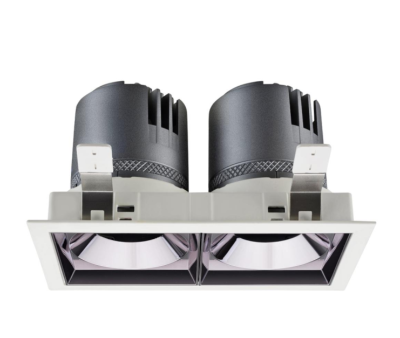

Single emission recessed downlights for indoor application. The super warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of technopolymer and features a white finish;the diffuser is made of uv resistant polycarbonate. The ingress protectiondegree is IP20.

The ValueDown is a budget-friendly, recessed downlight spot fixture that may be specified in multiple outputs with a beam spread of 15, 25 or 40 degrees.

Kocca 1.2

wall mounted for outdoor applications, double beam; surface mounted (wall); Power consumption: 7W, 15W; Power supply: 230Vac; Lumen output at source: 1314 lm (3000K, 15W), 368 lm (3000K, 7W); Delivered lumen output: 204 lm (3000K, 140° asymmetrical, 7W), 646 lm (3000K, 140° asymmetrical, 15W), 956 lm (3000K, diffuse version); 2 power LEDs, 1/4 ANSI BIN (7W version), 2 High Intensity power LEDs, 3-step MacAdam (15W version), 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Op
