The SCMR1220 is a key building block when specifying high power switching control. This 12 channel, feed through-latching relay controller enables lighting loads up to 20A to be switched. The twelve TV8 rated relays support resistive, capacitive, and inductive lighting loads, as well as non-lighting loads of any voltage up to 230VAC. The economical design of SCMR1220 provides a high density of channels in a small footprint, minimising the required space and cost of installation.

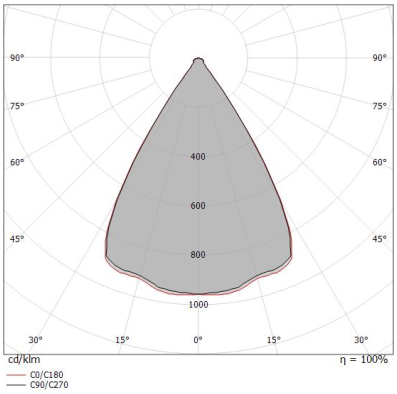

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with four medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Surface mounted downlight luminaire body made of aluminium housing with white powder coated finish. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.

The luminaire high light transmittance, high purity silica gel material, the ingress protection degree is IP65, IK08. Unique optical light distribution structure design, 360° light output uniformly without shadows. Skin-friendly surface treatment, comfortable touch, good flexibility, and simple shape. Product application for office lighting, decorative lighting, artistic lighting, modeling contrast.
