Surface mounted downlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request.

Luminaire made of aluminium alloy, aluminium and stainless steel Antique glass. Mounting plate with 3 fixing holes ø 5.5 mm. Angle 120° · Pitch circle ø 85 mm. 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@ Connecting terminal 2.5@ with plug connection. Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz. DC 176-280 V. Safety class I. Protection class IP 23. Protected against granular foreign bodies > 12 mm and showers up to 60°, r – Safety mark, c – Conformity mark.

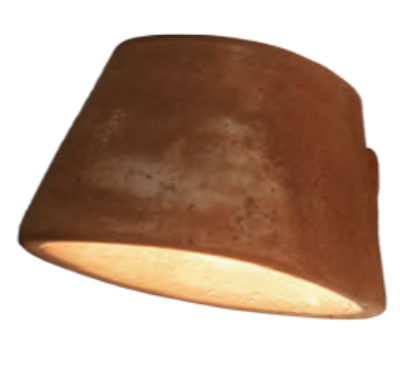

TOBO is designed to give an DOWN light with a single LED source. Due to the position of the diffuser and the shape of TOBO the light is oriented to give more light towards the floor than towards the sky, which is a common necessity in outdoor lighting. The materials used guarantee a perfect solution even for the most difficult outdoor situations in terms of resistance to heat, cold and oxidation. All pieces are made by our skilled craftsmen.

Single emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 576 topled LEDs. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 11,5 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 5 m length. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
