Single emission lines for outdoor application. The warm white LED light source with a flood light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 0.510 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99761 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Die-cast aluminium housing. Pre-treated before powder coating ensuring high corrosion resistance. 6 mm thick front ring in grade 316 stainless steel or aluminium. Single cable entry, through wiring upon request. Stainless steel fasteners in grade 304 with zinc flake coating (ZFC). Durable silicone rubber gasket. High-efficiency PMMA lens. Clear or frosted toughened glass. Integral control gear for HA-60036, HA-60037, HA-60049, HA-60050, HA-60196, HA-60197, HA-60209, HA-60215, HA-60295, HA-60296, HA-60305, HA-60306. Remote driver, remote box IP-rated and recessing box is included for HA-60385, HA-60386, HA-60395, HA-60396. Recessing box in high-density polyethylene is included. Suitable for walk-over with a maximum load of 200 kg

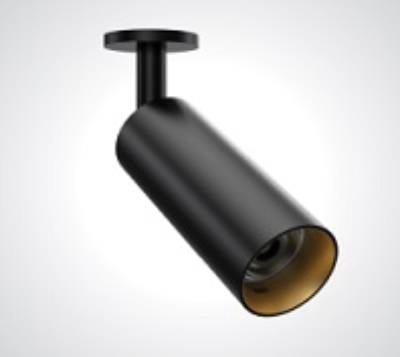

The occular round micro plate side exit is unique, elegant small aperture 360° Rotation 90° Tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.

Driver to be remote mounted

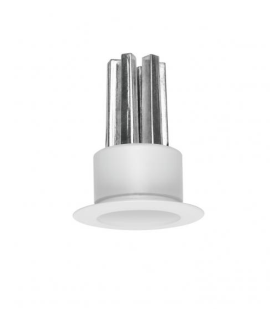

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium and features a white ral 9010 finish, processed by means of coating. The ingress protection degree is IP45; the total weight is of 0.070 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be ceiling-mounted, with a 35 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
