Square semi-recessed spotlight made of aluminium; surface black/matt silver (housing/light inset); 20° tiltable; luminaire housing can be attached to mounting plate without tools by interlock; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows

Rectangular luminaire is made of rounded edges in aluminium housing. Extremely flat (only 15mm) and slim (only 180mm) design. Modern shape in an elegant design for high demands. Surface black powder coated. Suspended luminaire with 1500mm cable suspension. With integrated tool-less suspension height adjustment; incl. transparent feed. Direct light distribution through LGP body (Light Guiding Prism); side coupled light directed downwards by laser engraving. Light control via highly reflective reflector material. Indirect light component with special PCBs for increased luminous flux and maximum ceiling illumination, separately controllable.

DIMENSION: (L)1180x(W)180X(H)34mm

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, mounting bracket powder coated aluminum with tilt scale: 2 drilled holes Ø 7 mm, spacing 40 ‑ 60 mm, 1 centre hole Ø 21 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, Beam angle (fwhm): 29°, luminous flux: 1066 lm, wattage: 55 W, delivered lumens 19 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,076 m², dimensions: Ø 215 mm, width 390 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

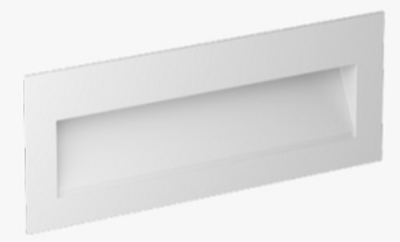

The Cuadro Wall Light is defined by a minimalist architectural design and a wide light distribution. Available in 4 models, including vandal-proof options equipped with vandal and corrosion-resistant screws, this highly efficient luminaire offers installation flexibility and peace of mind when installed in pathway applications.
