Direct light linear luminaire, designed to use monochrome LED lamps. For ground and wall installations,, the product requires an outer casing (to be purchased separately). The outer casing is not required for installations in panelled walls and ceilings. The body is made of extruded aluminium and includes die-cast aluminium end caps with 50/60 Shore A silicone seals.Fitted with an Opti Beam Lens optical system with a Wall Grazing Wide Flood optic.

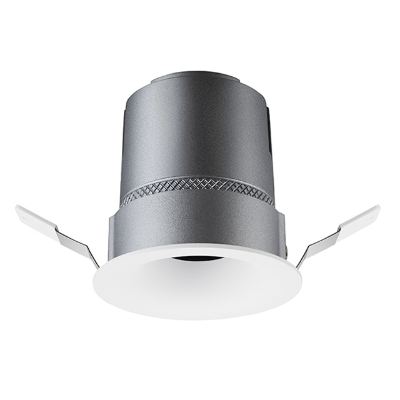

Round recessed spotlight; installation without tools in mounting set (trimless or with trim) with ball catch system; surface lacquered; installation possible in different housings; precise radiation characteristic due to high quality lens system; COB (Chip on Board) technology for maximum efficiency; no multiple shadows; efficient LEDs with very good colour rendering

Luminaire made of aluminium alloy,aluminium and stainless steel BEGA Unidure® coating technology. Safety glass, antireflection-coated,silicone gasket. Reflector surface made of pure aluminium

for pole top ø 76 m. Inner diameter of the pole min. 62 / max.70mm. Slip fitter insert depth 100mm. Connecting cable X05BQ-F 4×1 mm². Cable length 8m.

Luminaire made of copper and stainless steel, Opal glass with screw neck. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 3 fixing holes ø 8.5 mm. Angle 120° · Pitch circle ø 100 mm, 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@ Plug connection. Connecting terminal 2.5@ Earth conductor connection LED power supply unit 220-240 V x 0/50-60 Hz, DC 176-264 V, DC Start ≥ 198 V, Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water, Impact strength IK03. Protection against mechanical impacts < 0.35 joule, r – Safety mark, c – Conformity mark.
