Surface mounted downlight with zoom optics. The half beam angle can be infinitely adjusted between 16° and 53° using an adjustment screw. Luminaire made of aluminium alloy, aluminium and stainless steeL. IP65,IK08.
Luminaire made of aluminium alloy and stainless steel. Opal glass Silicone gasket. Mounting plate with 2 fixing holes ø 4.5 mm · 40 mm spacing 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ Earth conductor connection. Lampholder E 27. Safety class I. Protection class IP 44. Protected against granular foreign bodies > 1 mm and splash water. Impact strength IK06. Protection against mechanical impacts < 1 joule r – Safety mark, c – Conformity mark.
Suspended mount downlight, luminaire body made of aluminium housing with white powder coated finish. Come with 1m hanging rod. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.
The Eclipse Round is a fixed recessed downlight with a Ø80mm bezel and features a beautifully sculpted anti-glare baffle inside a Ø32mm aperture. Unique, elegant small aperture. 360° Rotation, 26° Tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.
Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.078 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
Recessed luminaire consisting of a lamp device, 6-cell emission raster and operating components. Version for high emission general lighting. LED lamps with high color rendering index. Main body made of extruded aluminium - anodised finish - cast zamak end caps - natural finish. Polycarbonate LED lamp support. Steel wire fixing springs. The optical system consists of a translucent textured methacrylate raster, created with a catadioptric system (patented Opti Beam Diamond optic) - with no galvanic treatments - combined with a gloss finish PET cover.
125mm Recessed hole high powered dimming and tunable downlight series, light colours can be changed all without reducing the brightness. These lights ensured sufficient levels of brightness for various types of spaces and can be used for a wide range of lighting through the use of dimming and tunable. TW 2700K - 5000K.
Round recessed luminaire with contact frame. Adjustable version with max 30° tilting movement. The main adjustable die-cast aluminium body includes a radiant surface that guarantees optimal heat dissipation. Metallised, thermoplastic, high definition reflector - wide flood optic (40°). Structure featuring a die-cast aluminium external contact frame with a white finish only. Steel technical rotation parts. The ring inside the adjustable body is made of thermoplastic.
Eclectic Ø90. Non-adjustable Downlight. “Cone” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 41º cut-off angle. IP54 water tightness. Alternative options for lenses, orientation modules and style façades are available as spare parts. The ingress protection degree is IP54.
Round or square recessed spotlight. Luminaire body in cast aluminium with optimal passive thermal management. Quick and easy installation via concealed springs for snap-in catch action for minimum ceiling thickness. Supplied prewired with 240mm cable and male/female plugs ready to plug-in (multi or single unit) to power LED converter unit.
Adjustable versions tiltable vertically 0-25° and rotable horizontally 350°.

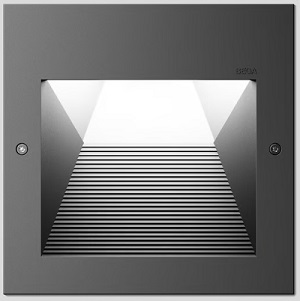

Recessed ceiling and wall luminaire with asymmetrical light distribution for flush or surface mounted installation. For glare-free lighting of ceiling, wall and ground surfaces. Luminaire made of aluminium alloy,
aluminium and stainless steel. IP65,IK05. DIMENSION: (W)150x(H)150x(D)100mm.
